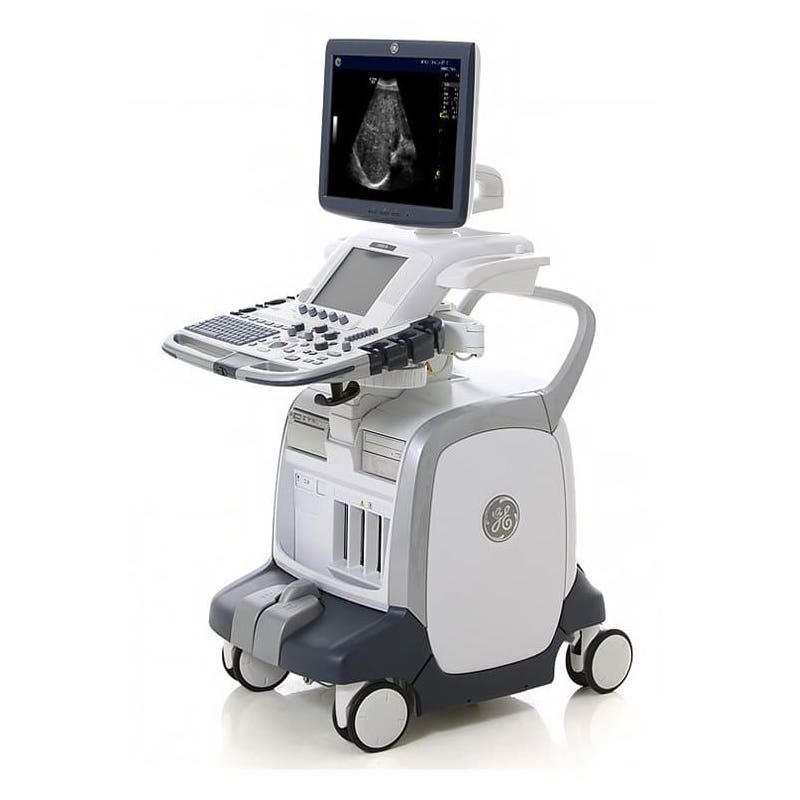

GE Logiq E9 Ultrasound Machine
The GE Logiq E9 is a high-end shared-service ultrasound system that can provide top-notch women’s health and 4D imaging, as well as clear imaging for radiology, cardiac, and vascular applications. XDclear, GE’s unique technology with the Logiq E9, is an imaging technology that employs specialized transducers with a crystal structure, audible enhancement, and filtering technology to enhance dynamic range, especially at deeper penetrations where image quality usually deteriorates.
The GE Healthcare Logiq E9 is suited for a multi-application clinic. The GE Logiq line can do both of these things, as well as radiology and general imaging. A powerful and adaptable ultrasound imaging device, the GE LOGIQ E9TM ultrasound machine. The GE LOGIQ E9 was created with the help of real doctors and ultrasound technicians to allow you to focus less on operating the ultrasound device and more on providing the best possible patient care.
With the LOGIQ E9, GE rebuilt the ultrasound system from the ground up, utilizing the most cutting-edge computer processing, software, and transducer probe technologies available. When you combine this with the new ergonomic and lightweight transducers, you have one of the most cutting-edge premium ultrasounds on the market today.
1,540,000.00₨
Description
Features:
- 19” high-resolution LCD monitor with 90°, and fold-down and lock mechanism for transportation
- 10.4” high-resolution LCD touch panel
- 4 active probe ports
- Automatic Optimization
- CrossXBeam
- SRI HD (Speckle Reduction Imaging)
- Fine Angle Steer
- Coded Harmonic Imaging
- Coded Contrast Imaging
- Virtual Convex
- Advanced 3D
- Raw Data Analysis
- Real-time automatic Doppler calculations
- OB calculations
- Fetal trending
- Multigestational calculations
- Hip Dysplasia Calculations
- Gynecological Calculations
- Vascular Calculations
- Urological Calculations
- Renal Calculations
- Cardiac Calculations
- InSiteExC capability
- TUI
- Q-analysis
- Auto IMT
- Cine Memory: 776 MB, Dual/Quad Image, Review Loop, and Speed.
- DICOM
- Public SR Template
- On-board electronic documentation
- Integrated 250 GB HDD, with 137 GB for Image Storage
- Patient Information database
- Image Archive on integrated CD/DVD and hard drive
- On-board storage of thermal printer
- Integrated locking mechanism for rolling lock and caster swivel lock
- Integrated cable management
- Front and rear handles
- Easily removable air filters
- Foot Switch with programmable functionality
- Console Protective Cover
Specifications:
- Height: Adjustable with maximum of 55.5 in. ( 1410 mm) and minimum of 44.5 in. ( 1130mm)
- Width: 23 in (585 mm)
- Depth: 32.8 in (830 mm)
- Weight: 309 lbs. (140 kg), approximately 400 lbs. with packaging.
- Applications:
- Abdominal
- Obstetrical
- Gynecological
- Breast
- Small Parts
- Peripheral Vascular
- Vascular
- Transcranial
- Intraoperative
- Transrectal
- Transvaginal
- Transesophageal
- Pediatric
- Neonatal
- Musculoskeletal
- Urological
- Adult Cardiac
- Pediatric Cardiac
The logiq e9 Ultrasound machine is also available for nationwide installation. Furthermore, maintenance and spare parts are readily available throughout the world. On the logiq e9 Ultrasound unit, a small amount of warranty is also available. We also have a dedicated team of hardware-software engineers and application experts available to assist you with any troubleshooting 24 hours a day, 7 days a week.
FAQS:
What about the imaging quality of this machine?
XDclear, GE’s unique technology with the Logiq E9, is an imaging technology that employs specialized transducers with a crystal structure, audible enhancement, and filtering technology to enhance dynamic range
What is the dimension of this machine’s screen?
It has 19” high-resolution LCD monitor with 90°, and fold-down and lock mechanism for transportation and 10.4” high-resolution LCD touch panel
